Double Cartridge Seals in Sealban

Application:

expensive fluids

dangerous and toxic liquids materials, microbial liquids, carcinogenic liquids or flammable liquids.

highly corrosive fluids

vacuum environments

create safety in the sealing system

sealing sediment-causing fluids that cause sharp crystals and hang-up due to liquid leakage

very low viscosity fluids

high-pressure fluids

very high viscosity fluids

very dirty liquids containing solid particles

sealing liquids with low lubrication properties

Description:

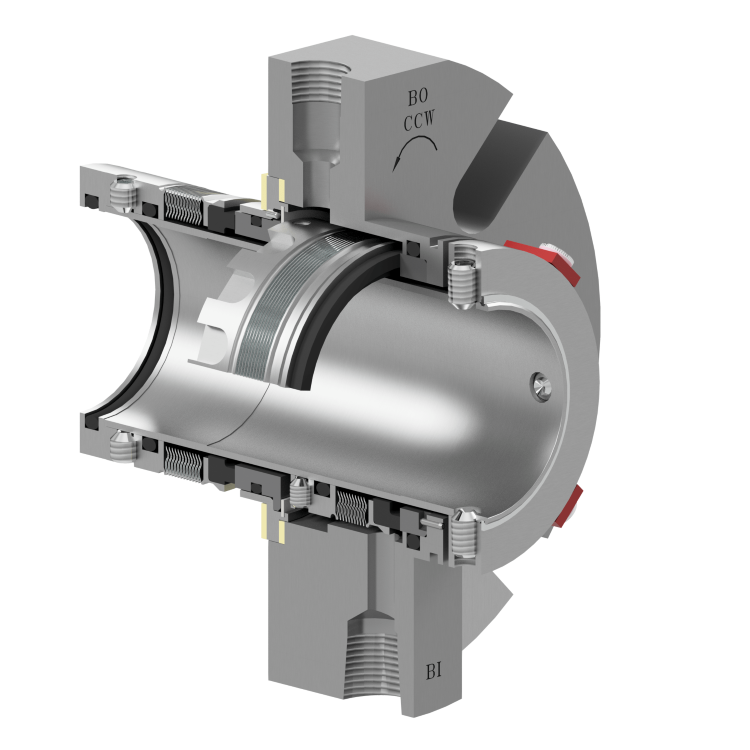

it is a modular dual pressurized, face-to-face, O-ring pusher, cartridge seal designed for severe duty mixer applications.  It features a single rotating mating ring used by both inboard and outboard seals. This minimizes the number of components and results in an axially compact design. Inboard and outboard seals are identical, maximizing interchangeability. this is specifically designed to accommodate very large amounts of runout and angular deflection. The seal incorporates modular hardware to provide maximum interchangeability.

The heavy-duty is design-specific to serve critically important vessels in batch or continuous processes. It guards the batch from contamination, greatly reduces leakage.
